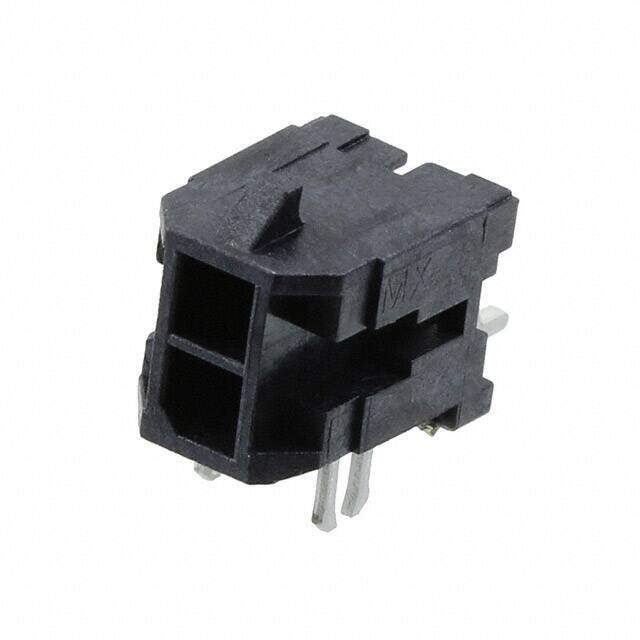

0430450207
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 2 POS Solder RA SMD Micro-Fit 3.0? Embossed T/R
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5344
≥1 USD $2.5344
≥10 USD $2.23344
≥100 USD $1.776456
Inventory: 1031
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Packaging Tape & Reel (TR)
Series Micro-Fit 3.0 43045
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Applications General Purpose, Medical, Military, Telecommunications
Number of Rows 2
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) 8A
Total Number of Contacts 2
Insulation Height 0.290 7.37mm
Style Board to Cable/Wire
Number of Positions Loaded All
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
