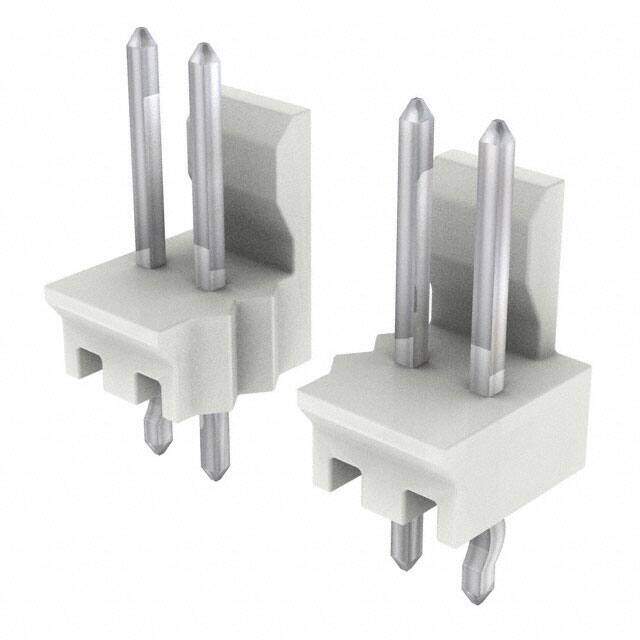

0430090084
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
KK 100 HDR ASSY FLK KINK 05CKT
PDF
/
Inventory: 8025
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm
Technical
Overall Contact Length 0.560 14.22mm
Contact Length - Mating 0.295 7.49mm
Contact Finish - Post Tin
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.140 3.56mm
Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded 4
Style Board to Board or Cable
Insulation Height 0.322 8.18mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 5
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series KK 43009
Packaging Bulk
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
