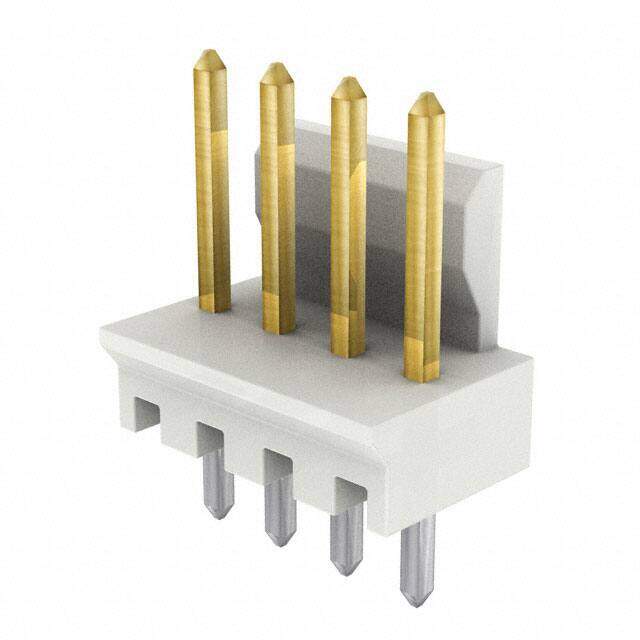

0430090058
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
KK 100 HDR ASSY FLK KINK 04CKT
PDF
/
Inventory: 8745
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Packaging Bulk
Series KK 43009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 4
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Natural
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Pitch 2.54mm
Orientation Straight
Depth 6.35mm
Insulation Height 0.322 8.18mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 1 Wall
Number of Contacts 4
Contact Finish - Post Tin
Contact Length - Mating 0.295 7.49mm
Housing Color Natural
Overall Contact Length 0.560 14.22mm
Dimensions
Length 10.03mm
Contact Finish Thickness - Mating 50.0μin 1.27μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
