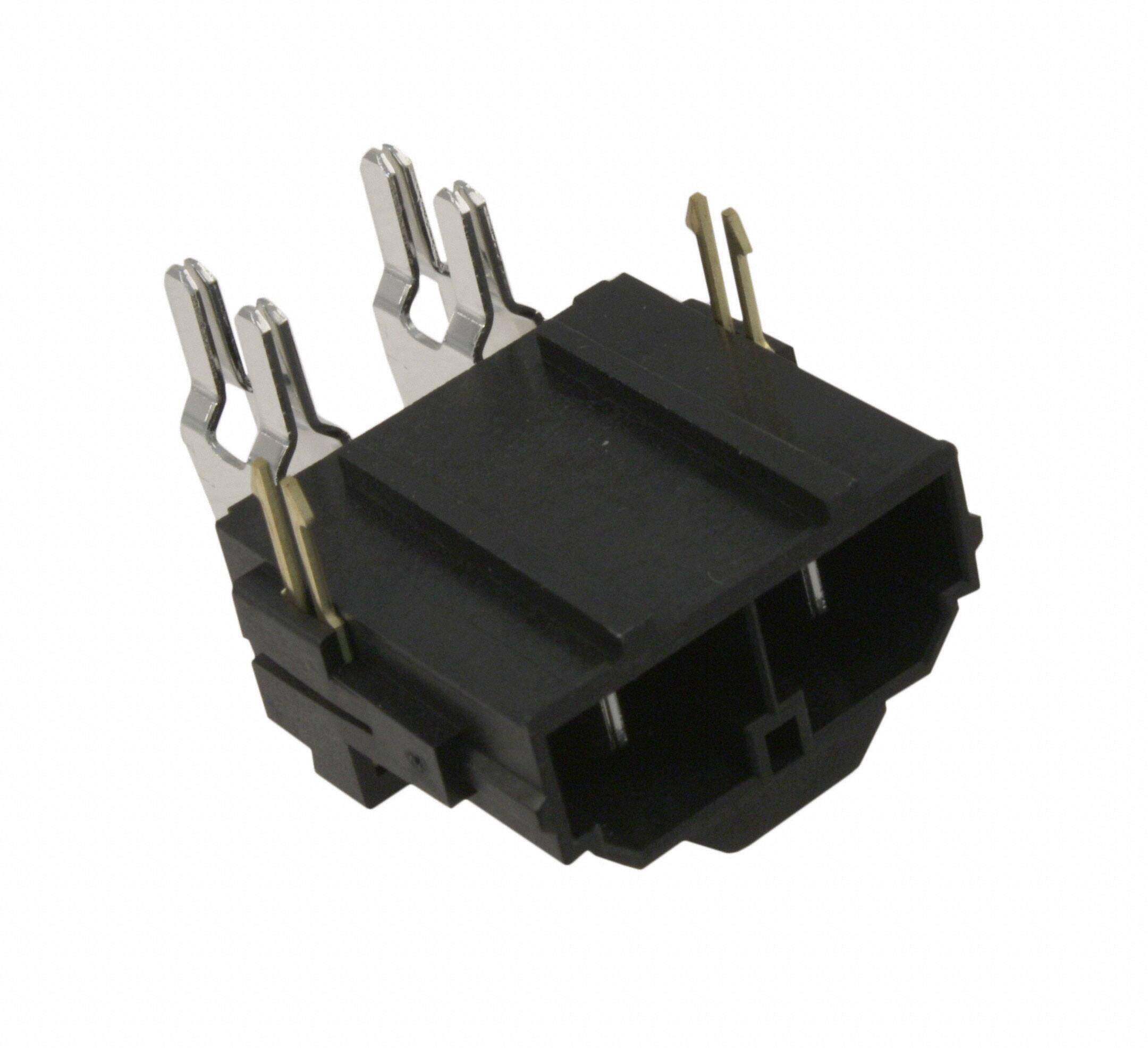

0428202222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 2POS 10MM
PDF
/
Buying Options
Total Price: USD $4.36
Unit Price: USD $4.3648
≥1 USD $4.3648
≥10 USD $3.815425
≥100 USD $3.198677
Inventory: 2322
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Zirconium Alloy
Mounting Type Through Hole, Right Angle
Contact Shape Rectangular
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Shell Material POLYETHYLENE
Technical
Packaging Tube
Series Mini-Fit Sr 42820
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Additional Feature POLARIZED
Fastening Type Locking Ramp
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Blade
Mixed Contacts NO
Insulation Height 0.421 10.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.394 10.00mm
Insulation Color Black
Contact Length - Post 0.201 5.11mm
Shrouding Shrouded - 4 Wall
UL Flammability Code 94V-0
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
