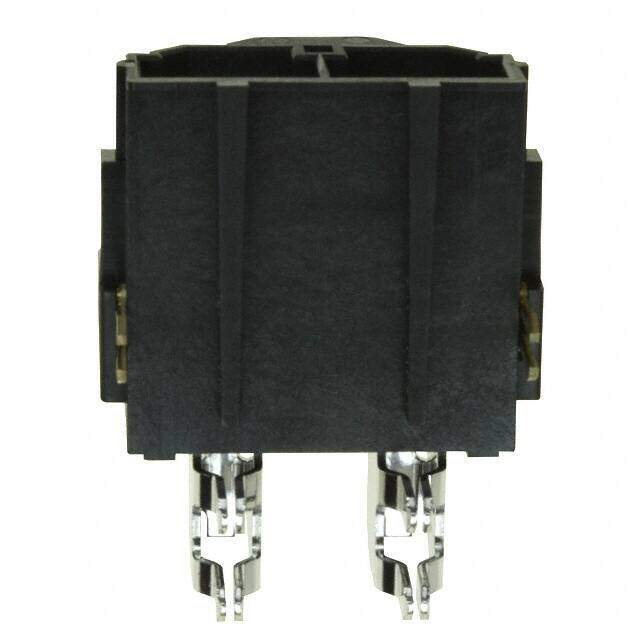

0428202212
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 2 POS 10mm Solder RA Thru-Hole 2 Terminal 1 Port Mini-Fit Sr? Tube
PDF
/
Buying Options
Total Price: USD $6.35
Unit Price: USD $6.3536
≥1 USD $6.3536
≥10 USD $5.557411
≥100 USD $4.498727
≥500 USD $3.704835
Inventory: 1653
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Copper Zirconium Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Rectangular
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Shell Material POLYETHYLENE
Housing Material Nylon
Compliance
Lead Free Contains Lead, Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Length 23.82mm
Height 14.36mm
Technical
Insulation Resistance 1GOhm
Contact Resistance 1.5mOhm
Empty Shell NO
Housing Color Black
UL Flammability Code 94V-0
Lead Pitch 10mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Pitch - Mating 0.394 10.00mm
Current Rating 50A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.421 10.70mm
Depth 28.6mm
Orientation Vertical
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Voltage - Rated DC 600V
Fastening Type Locking Ramp
HTS Code 8536.69.40.30
Additional Feature POLARIZED, SHROUDED
Voltage - Rated 600V
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 2
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
JESD-609 Code e3
Series Mini-Fit Sr 42820
Packaging Tube
