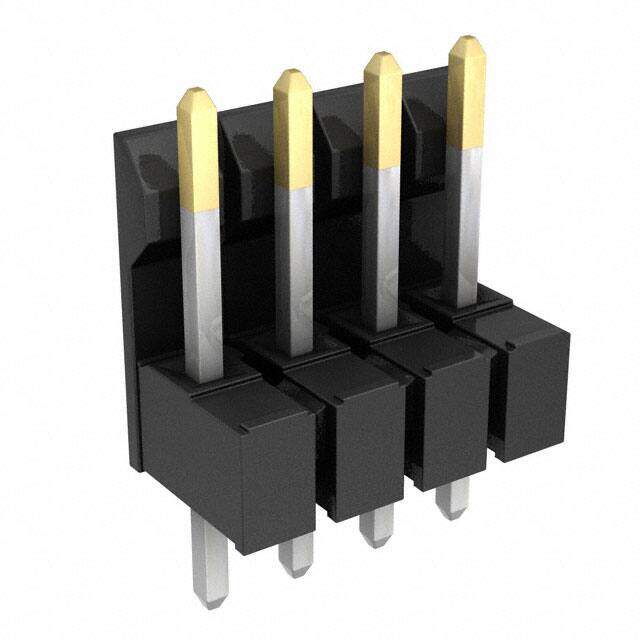

0422271004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 4POS 2.54MM
PDF
/
Inventory: 7415
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Overall Contact Length 0.600 15.24mm
Contact Length - Mating 0.295 7.49mm
Contact Finish - Post Tin
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.180 4.57mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.337 8.56mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 4
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series KK 42227
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 9 Weeks
