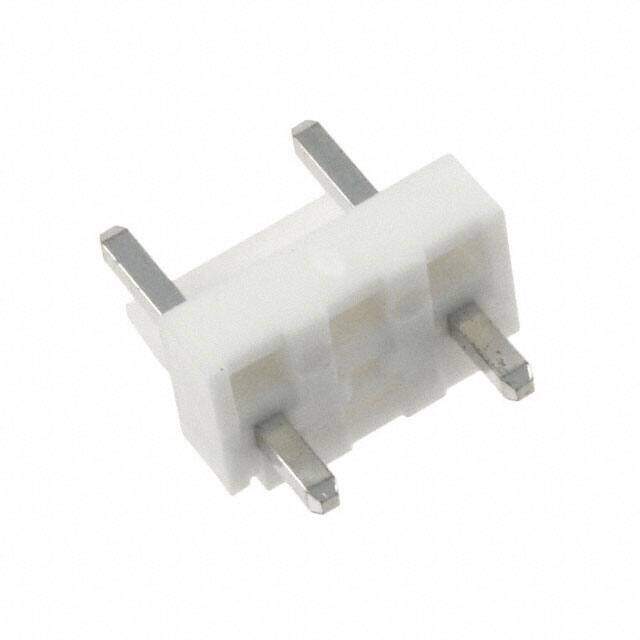

0359790210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
7.92MM PITCH W-T-B HEADER 2POS
PDF
/
Inventory: 9433
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Technical
Overall Contact Length 0.575 14.60mm
Empty Shell NO
UL Flammability Code 94V-0
Contact Length - Mating 0.303 7.70mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.146 3.70mm
Insulation Color White
Pitch - Mating 0.312 7.92mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.382 9.70mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Number of Rows 1
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Series 35979
Packaging Bulk
Physical
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
