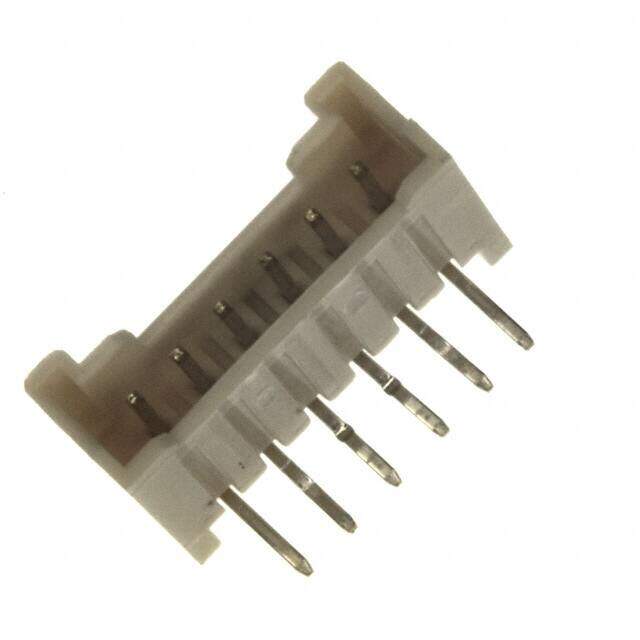

0353630660
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 6 POS 2mm Solder RA Thru-Hole Bag
PDF
/
Buying Options
Total Price: USD $0.46
Unit Price: USD $0.4576
≥1 USD $0.4576
≥10 USD $0.38632
≥100 USD $0.300168
≥500 USD $0.235814
≥1000 USD $0.207231
≥3000 USD $0.19294
Inventory: 14178
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Series Sherlock 35363
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 6
Applications Automotive, General Purpose
Number of Rows 1
Additional Feature POLARIZED
Fastening Type Locking Ramp
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Terminal Pitch 2mm
Insulation Height 0.217 5.51mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Natural
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.145 3.70mm
Dimensions
Contact Finish Thickness - Mating 78.7μin 2.00μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
