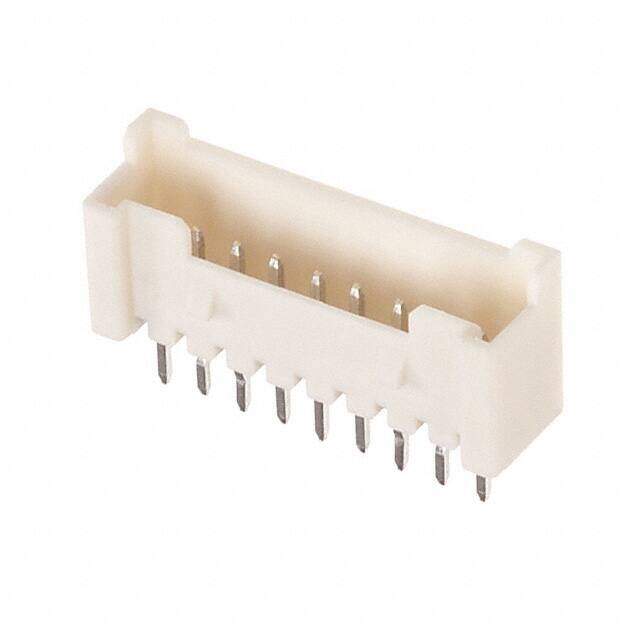

0353620910 image
Favorite
0353620910 image
Favorite

0353620910

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 9POS 2MM
PDF
/
Inventory: 998
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 78.7μin 2.00μm

Technical

Contact Length - Mating 0.145 3.70mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Insulation Color Natural
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.335 8.51mm
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Locking Ramp
Voltage - Rated 125V
Number of Rows 1
Applications Automotive, General Purpose
Number of Positions 9
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Sherlock 35362
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
