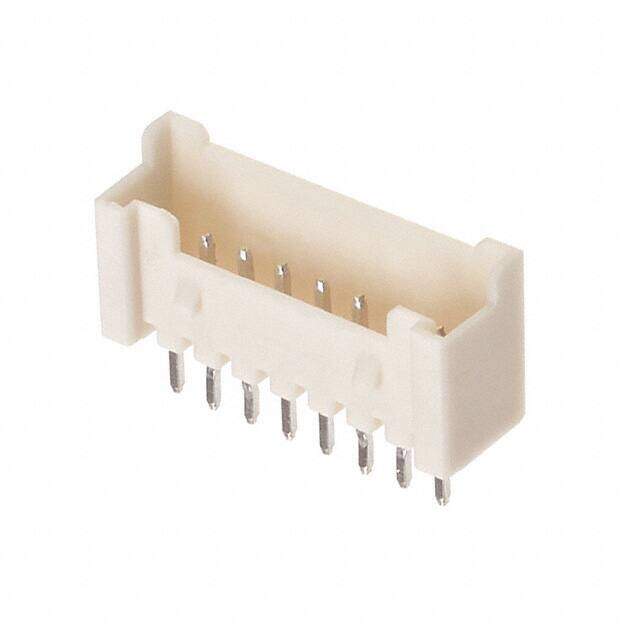

0353620810
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 8POS 2MM
PDF
/
Inventory: 8207
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series Sherlock 35362
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 8
Applications Automotive, General Purpose
Number of Rows 1
Voltage - Rated 125V
Fastening Type Locking Ramp
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Insulation Height 0.335 8.51mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Natural
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.145 3.70mm
Dimensions
Contact Finish Thickness - Mating 78.7μin 2.00μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
