0353120460

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

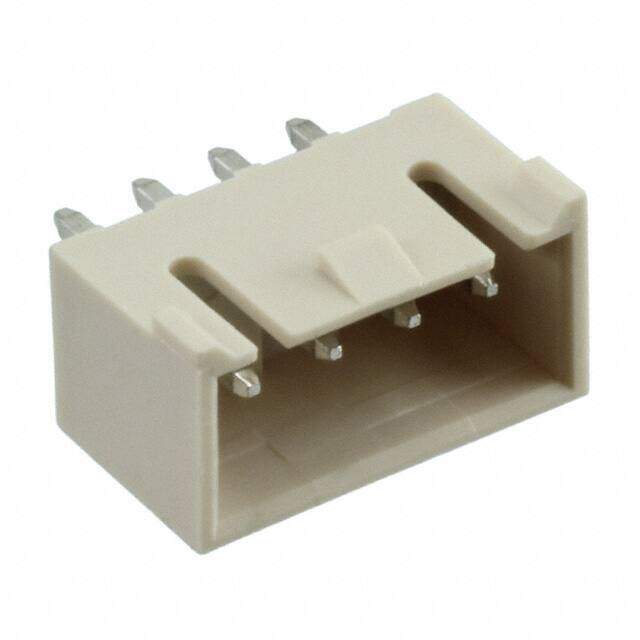

Description Conn Wire to Board HDR 4 POS 2.5mm Solder ST Thru-Hole Bag
PDF
/
Buying Options
Total Price: USD $0.13
Unit Price: USD $0.132
≥1 USD $0.132
≥10 USD $0.10736
≥100 USD $0.076912
≥500 USD $0.060166
≥1000 USD $0.058854
Inventory: 106540
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 200.0μin 5.08μm

Technical

Empty Shell NO
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.134 3.40mm
Insulation Color Natural
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.276 7.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Number of Rows 1
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 35312
Packaging Tube

Physical

Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 10 Weeks
