0348250125
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

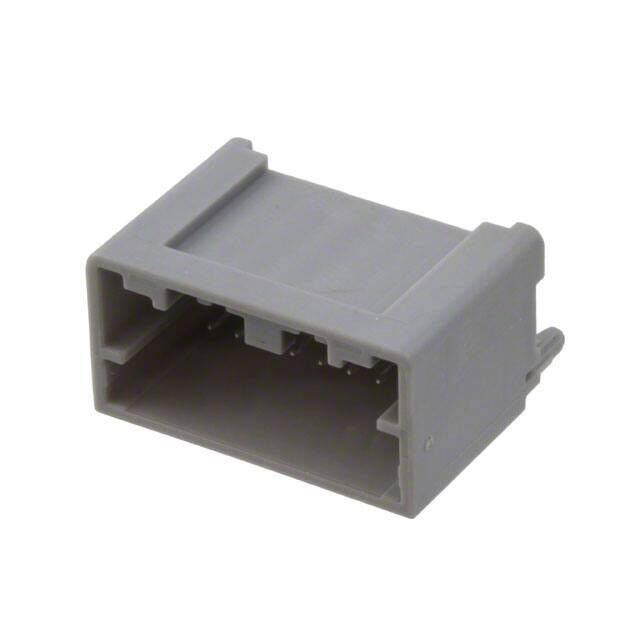

Mini50? Unsealed, Dual Row, Vertical Header, 12 Circuit, Polarization Option B, Gray, Tray
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.45728
≥100 USD $1.203734
≥500 USD $0.950303
≥1000 USD $0.8426
≥3000 USD $0.823601
Inventory: 1237
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Contact Length - Mating 0.218 5.55mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.113 2.87mm
Insulation Color Gray
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.614 15.60mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Number of Rows 2
Applications Automotive
Number of Positions 12
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
Series Mini50 34825
Packaging Tray
Physical
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
