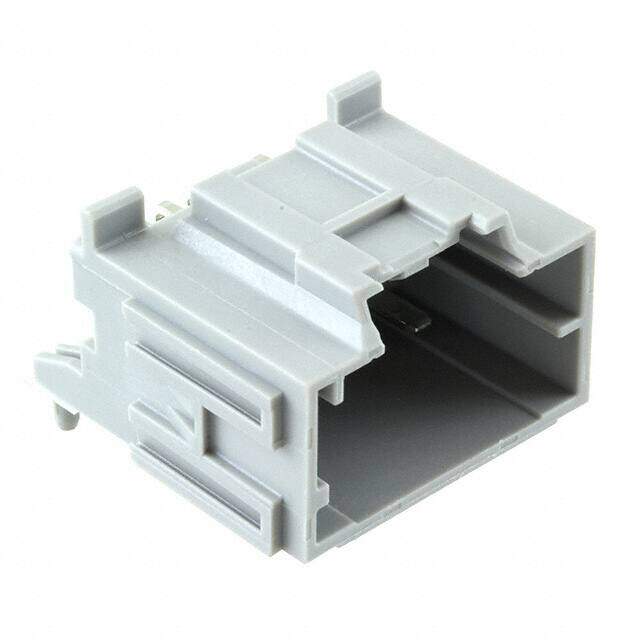

0346960101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole Stac64? Tray
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.3904
≥1 USD $1.3904
≥10 USD $1.18184
≥100 USD $0.97614
≥500 USD $0.904534
Inventory: 8314
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole, Right Angle
Contact Shape Rectangular, Square
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Technical
Operating Temperature -40°C~100°C
Packaging Tray
Series Stac64 34696
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10 (6 + 4 Power)
Applications Automotive
Number of Rows 2
Voltage - Rated 500V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Blade; Male Pin
Insulation Height 0.868 22.05mm
Style Board to Cable/Wire
Number of Positions Loaded All
Insulation Color Gray
Row Spacing - Mating 0.248 (6.30mm)
Contact Length - Post 0.110 2.79mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Compliance
RoHS Status ROHS3 Compliant
