0194270105
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

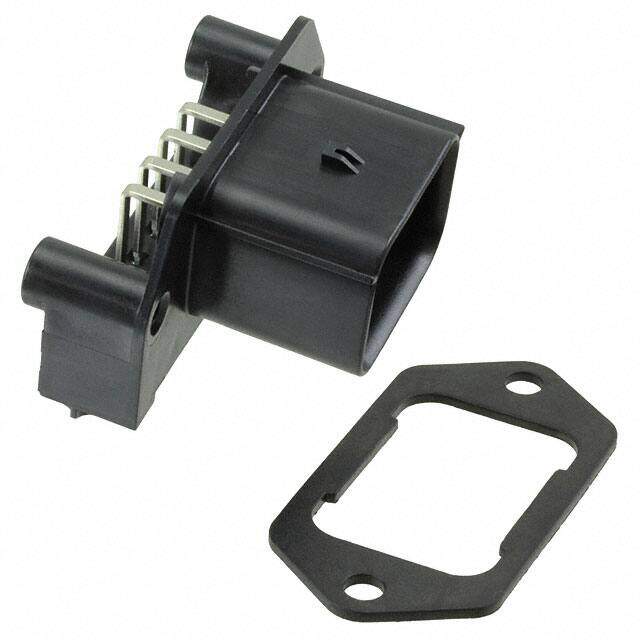

8 Positions Header, Shrouded Connector 0.230" (5.84mm) Panel Mount, Through Hole, Right Angle Gold
PDF
/
Buying Options
Total Price: USD $6.9
Unit Price: USD $6.8992
≥1 USD $6.8992
≥10 USD $5.9972
≥100 USD $5.27927
Inventory: 1274
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Panel Mount, Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Packaging Tray
Series MX150L 19427
JESD-609 Code e3
Feature Board Guide, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Applications Automotive, General Purpose, Industrial
Number of Rows 2
Additional Feature POLARIZED, SHROUDED
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Ingress Protection IP67 - Dust Tight, Waterproof
Insulation Height 1.247 31.67mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.230 5.84mm
Insulation Color Black
Row Spacing - Mating 0.230 (5.84mm)
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
UL Flammability Code 94V-0
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
