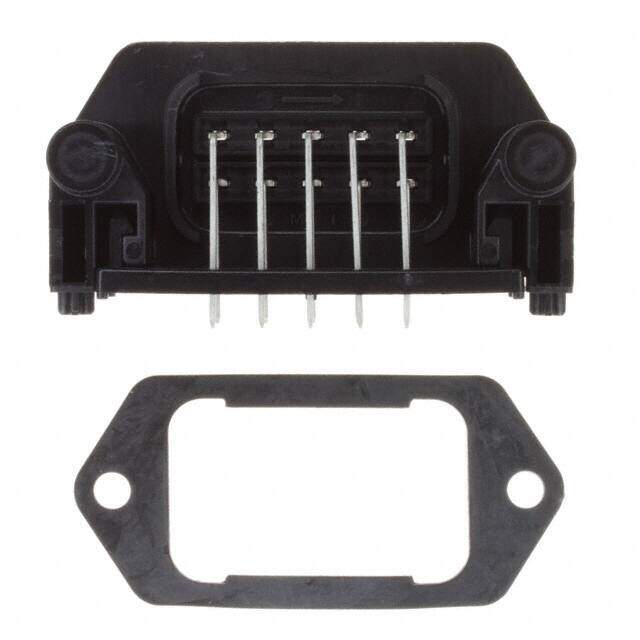

0194270031
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 10 POS 5.84mm Solder RA Thru-Hole MX150L? Tray
PDF
/
Buying Options
Total Price: USD $9.84
Unit Price: USD $9.8384
≥1 USD $9.8384
≥10 USD $8.71816
≥100 USD $6.92956
≥500 USD $5.945984
Inventory: 1712
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Panel Mount, Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Packaging Tray
Series MX150L 19427
Feature Board Guide, Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Applications Automotive, General Purpose, Industrial
Number of Rows 2
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Insulation Height 1.247 31.67mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.230 5.84mm
Insulation Color Black
Row Spacing - Mating 0.230 (5.84mm)
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
