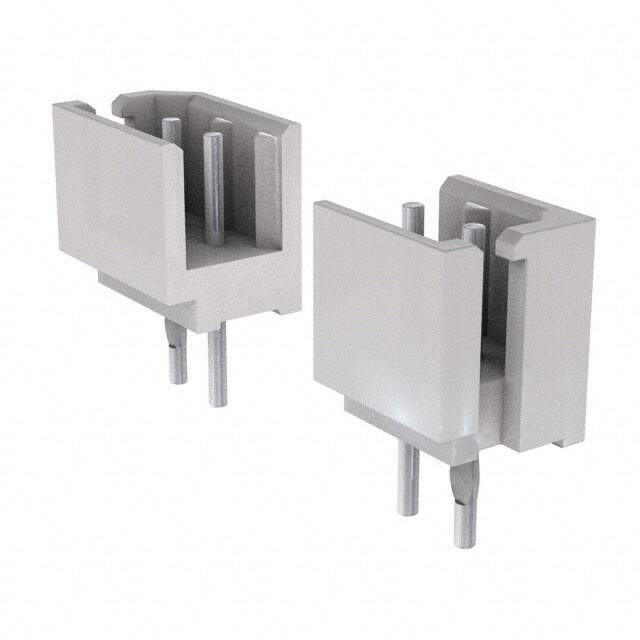

0099990992

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Shrouded Header HDR 8 POS 2.5mm Solder ST Thru-Hole SPOX? Bag
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.32384
≥100 USD $0.251944
≥500 USD $0.197982
≥1000 USD $0.173985
≥3000 USD $0.161982
Inventory: 1281
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 160.0μin 4.06μm
Contact Finish Thickness - Mating 160.0μin 4.06μm

Technical

Overall Contact Length 0.350 8.89mm
Contact Length - Mating 0.138 3.50mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Insulation Color Natural
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.232 5.90mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Detent Lock
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Mini-SPOX 5267
Packaging Bulk

Physical

Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 14 Weeks
