0099990988
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

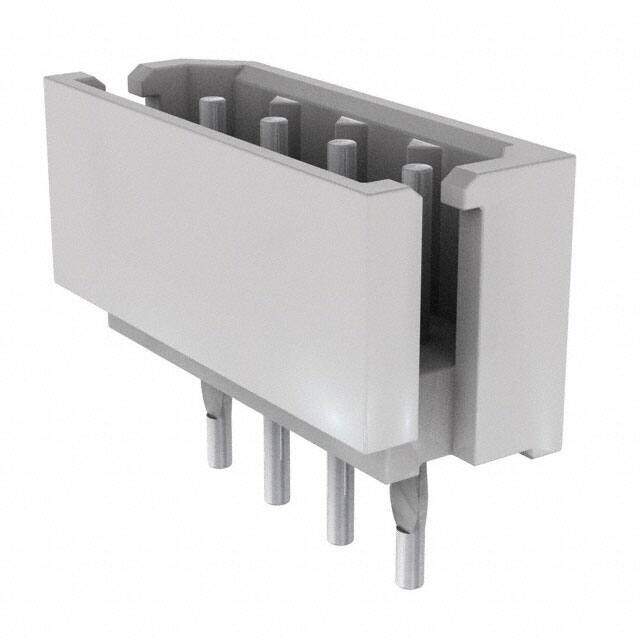

CONN HEADER VERT 4POS 2.5MM
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.2904
≥1 USD $0.2904
≥10 USD $0.23848
≥100 USD $0.175032
≥500 USD $0.139207
≥1000 USD $0.119319
≥3000 USD $0.111364
Inventory: 6984
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Technical
Packaging Bulk
Series Mini-SPOX 5267
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Additional Feature POLARIZED, SHROUDED
Fastening Type Detent Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Terminal Pitch 2.5mm
Insulation Height 0.232 5.90mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.098 2.50mm
Insulation Color Natural
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.138 3.50mm
Overall Contact Length 0.350 8.89mm
Dimensions
Contact Finish Thickness - Mating 160.0μin 4.06μm
Contact Finish Thickness - Post 160.0μin 4.06μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
