0050362377
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

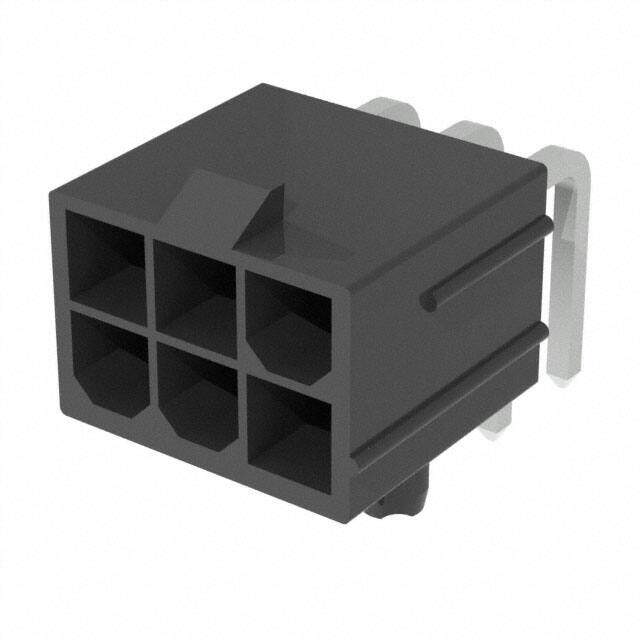

Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Mini-Fit Jr? Bag
PDF
/
Inventory: 6764
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Length 13.8mm
Technical
Number of Ports 1
Number of Circuits 2
Housing Color Black
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.142 3.60mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Black
Pitch - Mating 0.165 4.20mm
Current Rating 9A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.378 9.60mm
Depth 19.93mm
Orientation Right Angle
Pitch 4.191mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Gender Male
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 6
Connector Type Header
Termination Solder
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Lock
Series Mini-Fit Jr 5569
Packaging Bulk
Physical
Housing Material Nylon
Material Brass, Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Brass
