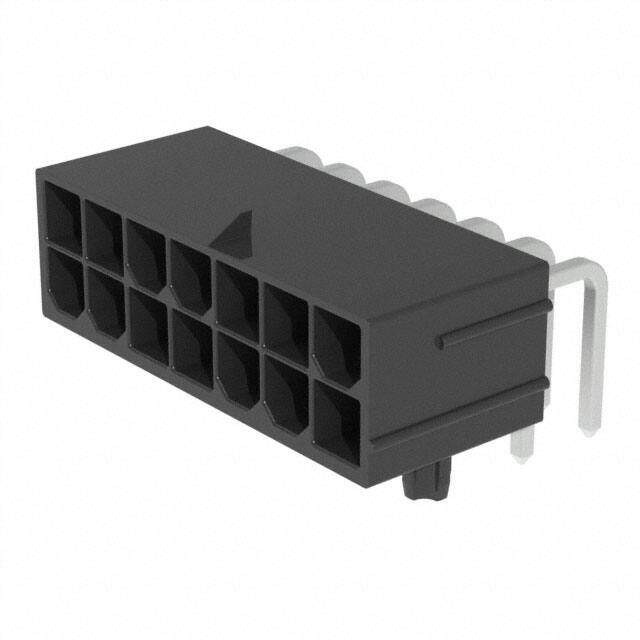

0050362298 image
Favorite
0050362298 image
Favorite

0050362298

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Mini-Fit Jr? Bag
PDF
/
Inventory: 5618
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Shrouding Shrouded - 4 Wall
Contact Length - Post 0.142 3.60mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Black
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.378 9.60mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Number of Positions 14
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Lock
Series Mini-Fit Jr 5569
Packaging Bulk

Physical

Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
