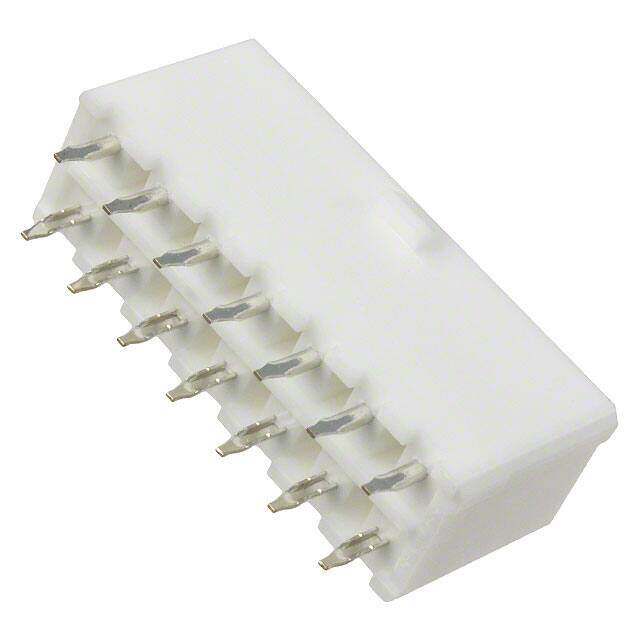

0039310140 image
Favorite
0039310140 image
Favorite

0039310140

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 14POS 4.2MM
PDF
/
Buying Options
Total Price: USD $2.37
Unit Price: USD $2.3672
≥1 USD $2.3672
≥10 USD $2.01608
≥100 USD $1.665752
≥500 USD $1.315072
≥1000 USD $1.166026
Inventory: 8254
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6

Technical

Packaging Bulk
Series Mini-Fit Jr 5566
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 14
Applications General Purpose, Industrial, Telecommunications
Number of Rows 2
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.504 12.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color Natural
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall

Dimensions

Contact Finish Thickness - Mating 35.4μin 0.90μm
Contact Finish Thickness - Post 35.0μin 0.90μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
