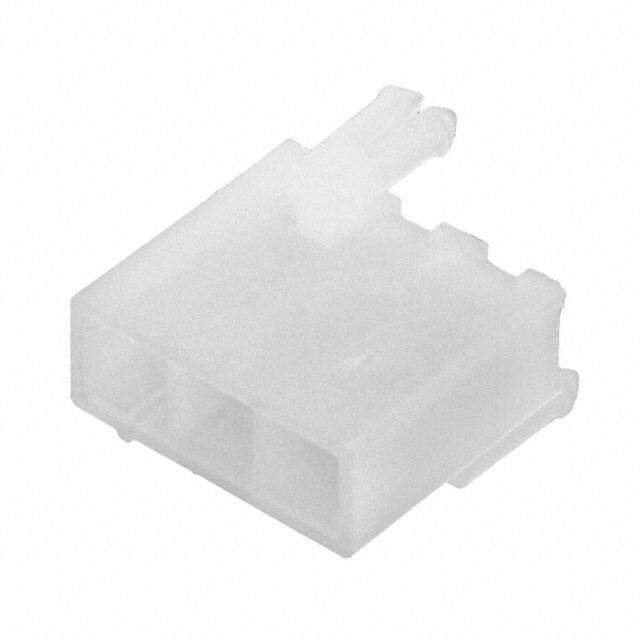

0039305037
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
MINIFITJR VT HDR ASSY WPEGS SR 3
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.44616
≥100 USD $0.34738
≥500 USD $0.272923
≥1000 USD $0.248107
Inventory: 16690
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Technical
Packaging Tray
Series Mini-Fit Jr 5566
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 3
Applications General Purpose, Industrial, Telecommunications
Number of Rows 1
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.490 12.44mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color Natural
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
