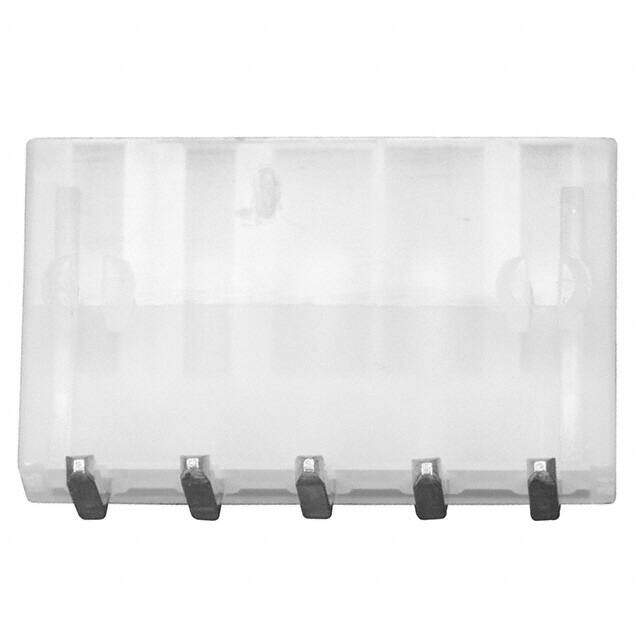

0039303057
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 5POS 4.2MM
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.244
≥1 USD $2.244
≥10 USD $1.9096
≥100 USD $1.577778
≥500 USD $1.245614
≥1000 USD $1.104435
Inventory: 3724
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Insulation Color Natural
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Number of Rows 1
Applications General Purpose, Industrial, Telecommunications
Number of Positions 5
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Mini-Fit Jr 5569
Packaging Bulk
Physical
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
Supply Chain
Factory Lead Time 7 Weeks
