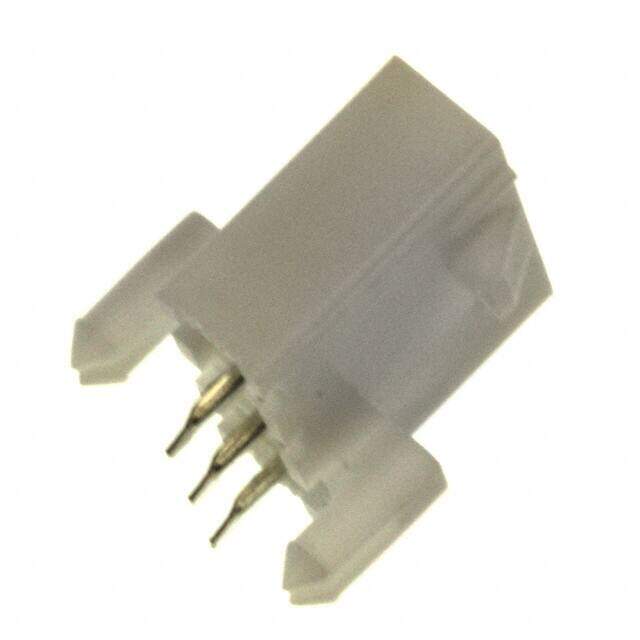

0039302030

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Connector Wire to Board Header 3 Position 4.2mm Solder Straight Thru-Hole Tray
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.8712
≥1 USD $0.8712
≥10 USD $0.71896
≥100 USD $0.59928
≥500 USD $0.449416
≥1000 USD $0.419461
≥3000 USD $0.39849
Inventory: 16149
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 35.0μin 0.90μm
Contact Finish Thickness - Mating 35.4μin 0.90μm

Technical

Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Insulation Color Natural
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.490 12.44mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Number of Rows 1
Applications General Purpose, Industrial, Telecommunications
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Mini-Fit Jr 5566
Packaging Tray

Physical

Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 5 Weeks
