0039301202
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

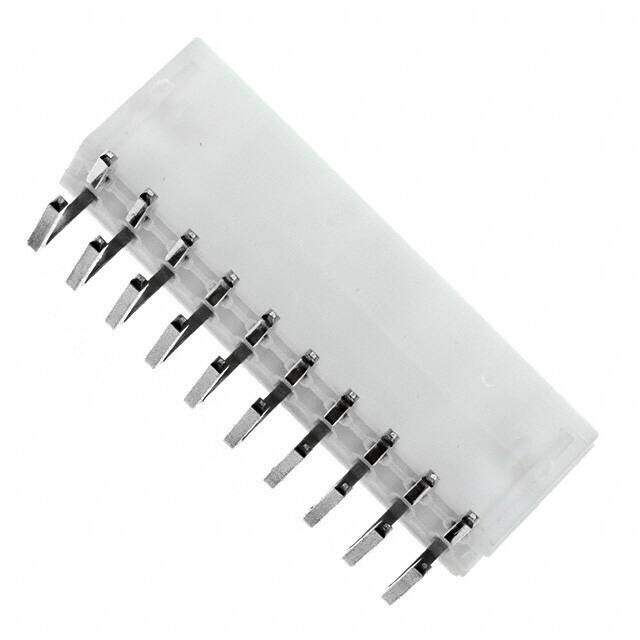

CONN HEADER R/A 20POS 4.2MM
PDF
/
Buying Options
Total Price: USD $8.32
Unit Price: USD $8.316
≥1 USD $8.316
≥10 USD $7.23008
≥100 USD $5.96464
≥500 USD $4.952446
Inventory: 861
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
Technical
Packaging Bulk
Series Mini-Fit Jr 5569
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications General Purpose, Industrial, Telecommunications
Number of Rows 2
Gender Female
Voltage - Rated 600V
Additional Feature POLARIZED
Fastening Type Locking Ramp
Voltage - Rated DC 600V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Right Angle
Insulation Height 0.378 9.60mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 6A
Pitch - Mating 0.165 4.20mm
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.142 3.60mm
Shrouding Shrouded - 4 Wall
Lead Pitch 4.2mm
Number of Contacts 20
Contact Finish - Post Tin
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Natural
Empty Shell NO
Insulation Resistance 1GOhm
ELV Compliant
Halogen Free Low Halogen
Glow Wire Compliant Non-compliant
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
