0039301022
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

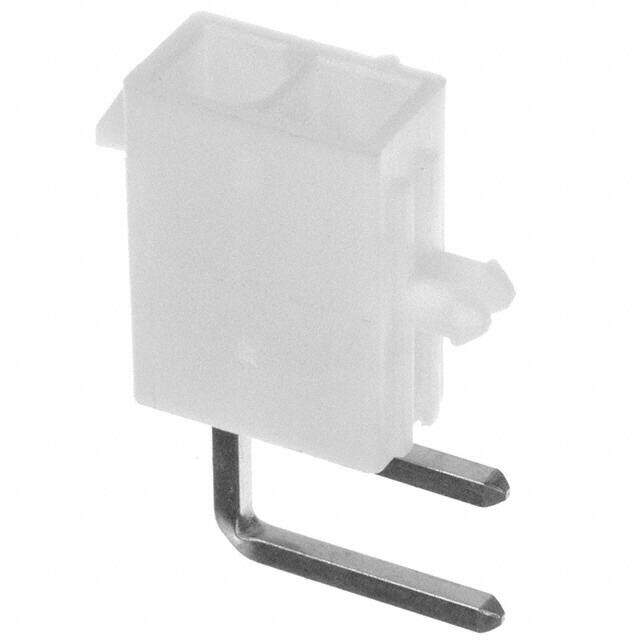

Connector Wire to Board Header 2 Position 4.2mm Solder Right Angle Thru-Hole Tray
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $1.3244
≥100 USD $1.093928
≥500 USD $0.86365
≥1000 USD $0.748493
Inventory: 16945
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Technical
Packaging Bulk
Series Mini-Fit Jr 5569
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Applications General Purpose, Industrial, Telecommunications
Additional Feature POLARIZED
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.378 9.60mm
Style Board to Cable/Wire
Number of Positions Loaded All
Insulation Color Natural
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.142 3.60mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
UL Flammability Code 94V-0
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
