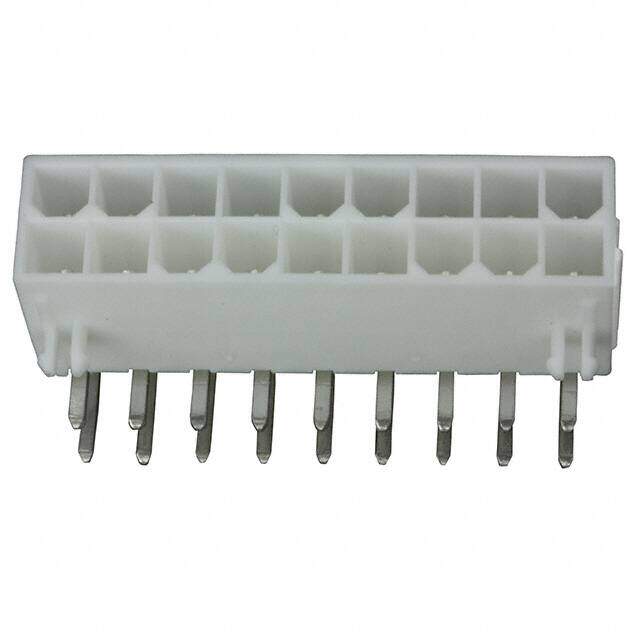

0039300180
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 18POS 4.2MM
PDF
/
Buying Options
Total Price: USD $3.57
Unit Price: USD $3.5728
≥1 USD $3.5728
≥10 USD $3.14424
≥100 USD $2.501048
≥500 USD $2.07233
Inventory: 653
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.142 3.60mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Natural
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.378 9.60mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Number of Positions 18
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Series Mini-Fit Jr 5569
Packaging Bulk
Physical
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
Supply Chain
Factory Lead Time 7 Weeks
