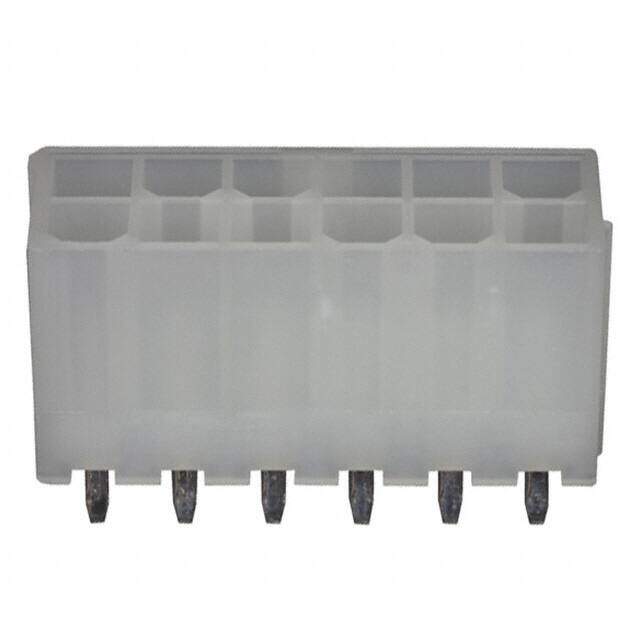

0039293126
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 12POS 4.2MM
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8744
≥1 USD $1.8744
≥10 USD $1.59544
≥100 USD $1.317712
≥500 USD $1.00562
≥1000 USD $0.922398
Inventory: 314
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Post 35.0μin 0.90μm
Contact Finish Thickness - Mating 35.4μin 0.90μm
Technical
Empty Shell NO
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Natural
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Additional Feature POLARIZED, SHROUDED
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Number of Positions 12
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Mini-Fit Jr 5566
Packaging Bulk
Physical
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 5 Weeks
