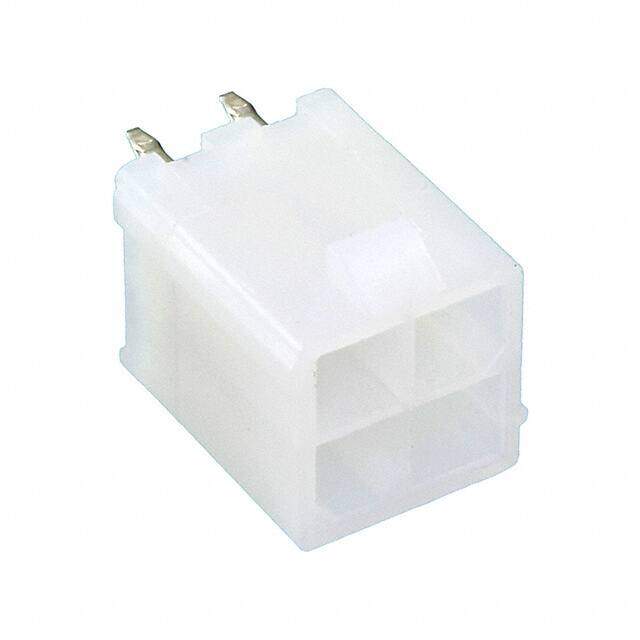

0039281043 image
Favorite
0039281043 image
Favorite

0039281043

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description 4 Pin Vertical Header MINI FIT JR MOLEX PN 39281043 WITHOUT PEGS * Disc by Waytek
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.5984
≥100 USD $0.49896
≥500 USD $0.399177
≥1000 USD $0.349281
≥3000 USD $0.331813
Inventory: 151282
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Shell Material POLYAMIDE66

Technical

Packaging Bulk
Series Mini-Fit Jr 5566
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Applications General Purpose, Industrial, Telecommunications
Number of Rows 2
Additional Feature SHROUDED, POLARIZED
Fastening Type Locking Ramp
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.504 12.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color Natural
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Empty Shell NO

Dimensions

Contact Finish Thickness - Mating 35.4μin 0.90μm
Contact Finish Thickness - Post 35.0μin 0.90μm

Compliance

Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
