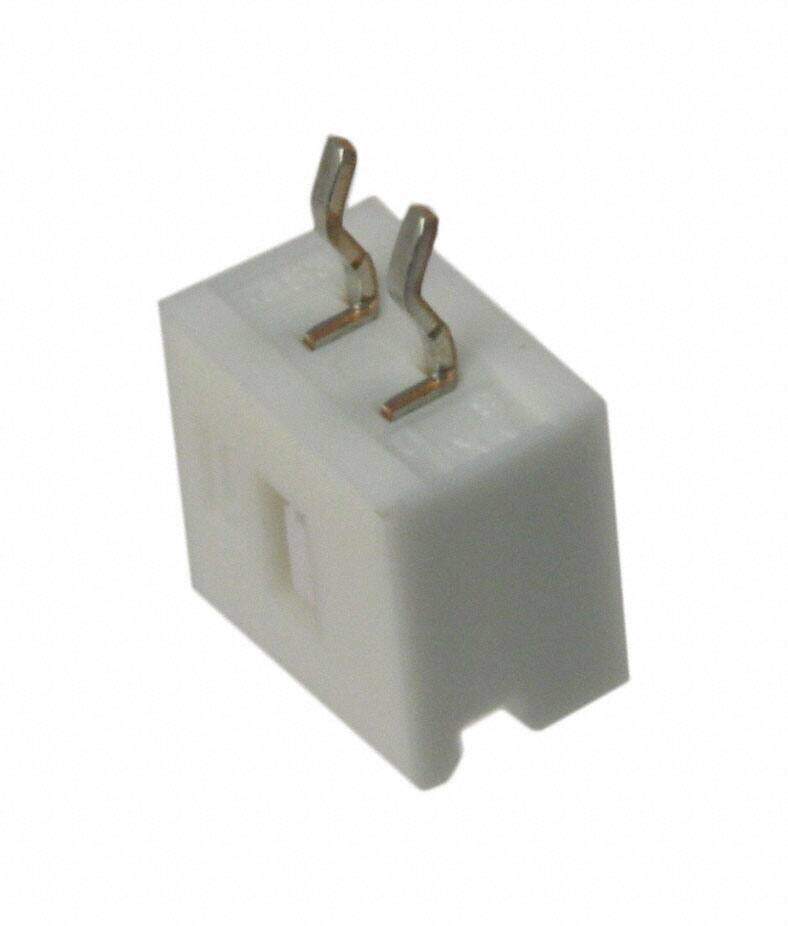

0039276023 image
Favorite
0039276023 image
Favorite

0039276023

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 2POS 2.5MM
PDF
/
Inventory: 1365
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Technical

Overall Contact Length 0.356 9.05mm
Contact Length - Mating 0.165 4.20mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.132 3.35mm
Insulation Color Natural
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.268 6.80mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Number of Rows 1
Number of Positions 2
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 5483
Packaging Bulk

Physical

Insulation Material Polybutylene Terephthalate (PBTP)
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
