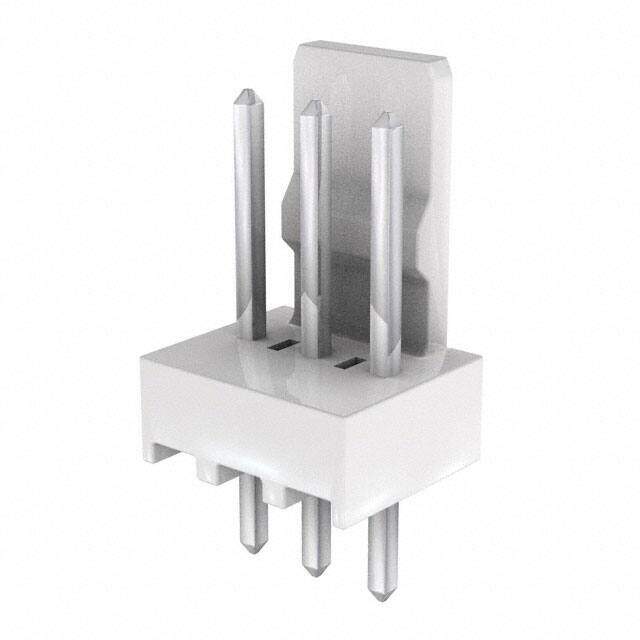

0038007222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
254 MM KK HDR VT VRA FL VD02 3CK
PDF
/
Inventory: 933
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Series KK 6410
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 3
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Additional Feature POLARIZED
Fastening Type Friction Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.461 11.70mm
Style Board to Cable/Wire
Number of Positions Loaded 2
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 1 Wall
Contact Length - Mating 0.295 7.49mm
Overall Contact Length 0.560 14.22mm
Dimensions
Contact Finish Thickness - Mating 60.0μin 1.52μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
