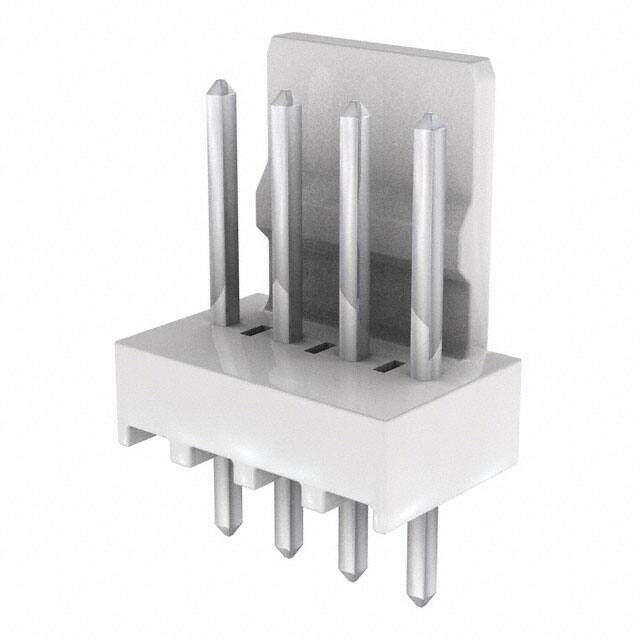

0038004749
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 2.5mm KK Hdr Vt VrA r Vt VrA FL Vd3 4Ckt
PDF
/
Inventory: 3577
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm
Length 10.16mm
Technical
Overall Contact Length 0.560 14.22mm
Housing Color Natural
Contact Length - Mating 0.295 7.49mm
Number of Contacts 4
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.140 3.56mm
Pitch - Mating 0.100 2.54mm
Current Rating 7A
Number of Positions Loaded 3
Style Board to Cable/Wire
Insulation Height 0.461 11.70mm
Depth 5.8mm
Orientation Vertical
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Additional Feature POLARIZED
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series KK 6410
Packaging Bulk
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
