0026645020
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

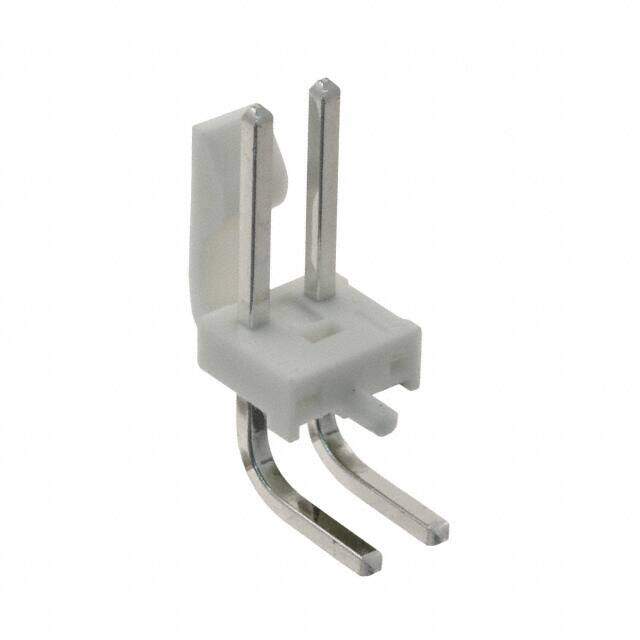

CONN HEADER R/A 2POS 3.96MM
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.2376
≥1 USD $0.2376
≥10 USD $0.19536
≥100 USD $0.143352
≥500 USD $0.114726
Inventory: 18265
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm
Technical
Empty Shell NO
UL Flammability Code 94V-0
Contact Length - Mating 0.450 11.43mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.156 3.96mm
Insulation Color Natural
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.394 10.00mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series KK 42492
Packaging Bulk
Physical
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
