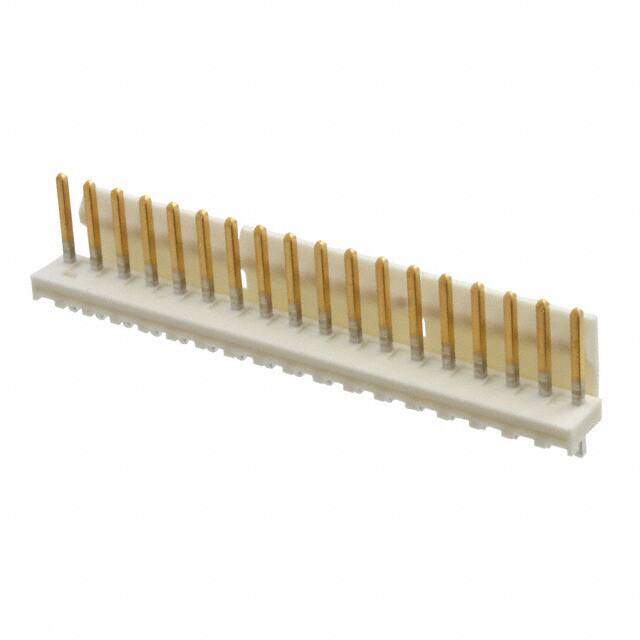

0026614180

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 18POS 3.96MM
PDF
/
Buying Options
Total Price: USD $10.99
Unit Price: USD $10.9912
≥1 USD $10.9912
≥10 USD $9.74072
≥100 USD $7.742328
≥500 USD $6.643428
Inventory: 82
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 20.0μin 0.51μm

Technical

Overall Contact Length 0.720 18.29mm
Contact Length - Mating 0.450 11.43mm
Contact Finish - Post Tin
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.140 3.56mm
Insulation Color Natural
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.446 11.33mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 18
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 41791
Packaging Bulk

Physical

Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole

Supply Chain

Factory Lead Time 11 Weeks
