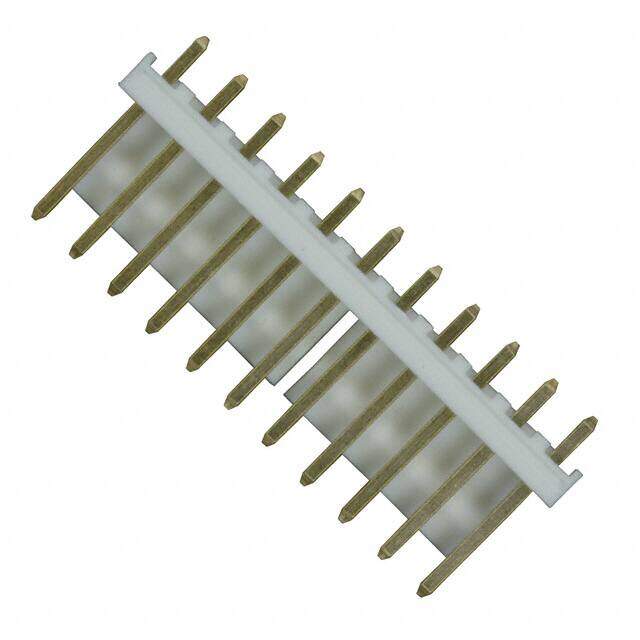

0026614110
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 11POS 3.96MM
PDF
/
Buying Options
Total Price: USD $3.86
Unit Price: USD $3.856527
≥1 USD $3.856527
≥10 USD $3.638237
≥100 USD $3.432291
≥500 USD $3.238015
≥1000 USD $3.054731
Inventory: 3396
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Technical
Overall Contact Length 0.720 18.29mm
Contact Length - Mating 0.450 11.43mm
Contact Finish - Post Tin
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.140 3.56mm
Insulation Color Natural
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.446 11.33mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 11
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 41791
Packaging Bulk
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 13 Weeks
