0026603060
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

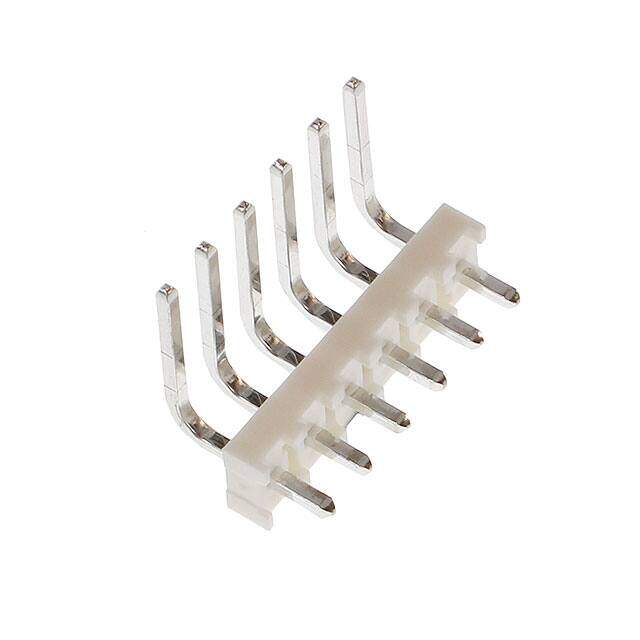

Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole KK? Bag
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.78232
≥100 USD $0.652203
≥500 USD $0.521761
≥1000 USD $0.456544
≥3000 USD $0.433717
Inventory: 322
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material BRASS
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled
Technical
Packaging Bulk
Series KK 41772
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Additional Feature POLARIZED
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.130 3.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Insulation Color Natural
Contact Length - Post 0.140 3.56mm
Shrouding Unshrouded
Contact Length - Mating 0.585 14.86mm
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 60.0μin 1.52μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
