0026603036
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

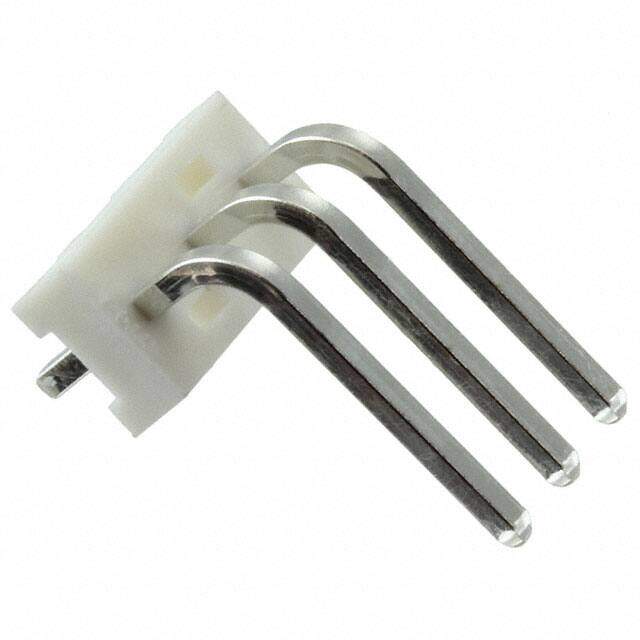

KK 156 HDR ASSY RTAN TIN 3POS
PDF
/
Inventory: 7923
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm
Technical
Contact Length - Mating 0.698 17.73mm
Contact Finish - Post Tin
Number of Contacts 3
Shrouding Unshrouded
Contact Length - Post 0.156 3.96mm
Insulation Color Natural
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.130 3.30mm
Pitch 3.9624mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Color White
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 41772
Packaging Bulk
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 11 Weeks
