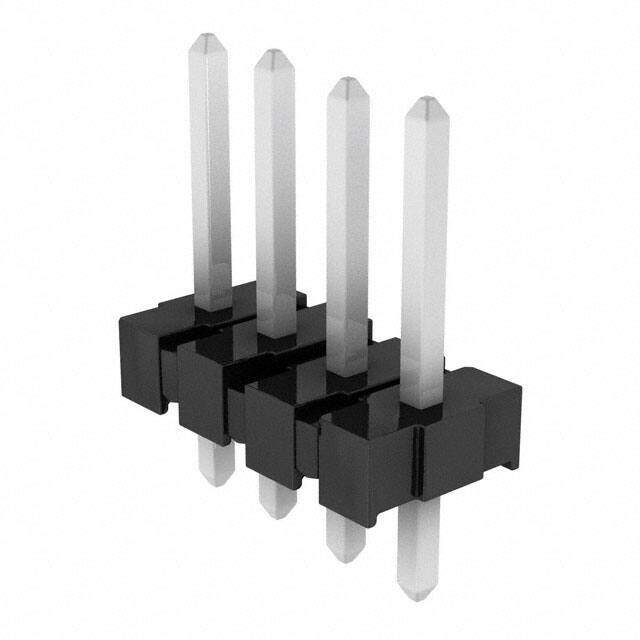

0026580045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
KK 156 HDR ASSY FLAT BKWY 4POS
PDF
/
Inventory: 9675
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Contact Plating Copper, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Technical
Packaging Bulk
Series KK 41661
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 4
Color Black
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Pitch 3.9624mm
Insulation Height 0.128 3.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Insulation Color Black
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Number of Contacts 4
Contact Finish - Post Tin
Contact Length - Mating 1.012 25.70mm
Overall Contact Length 1.250 31.75mm
Dimensions
Contact Finish Thickness - Mating 60.0μin 1.52μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
