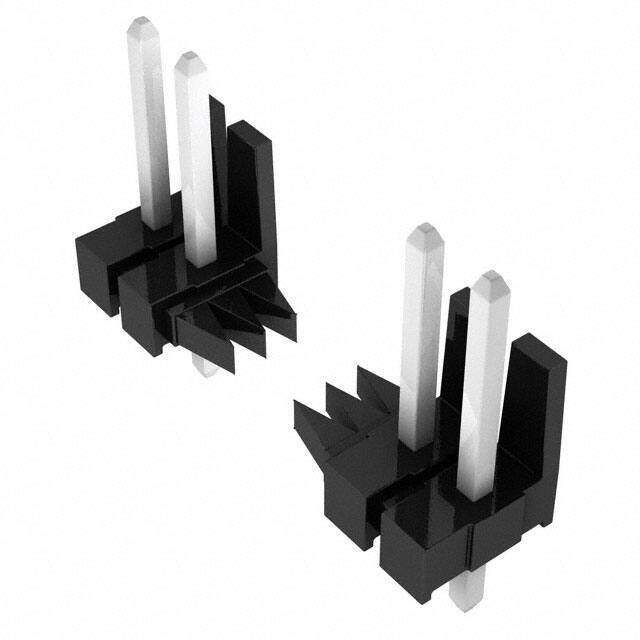

0026496177

Molex
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description 156 KK BKWY HDR POLZ SQP 17POS
PDF
/
Inventory: 4974
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled

Technical

Packaging Bulk
Series KK 41681
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 17
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.360 9.14mm
Style Board to Board or Cable
Number of Positions Loaded 16
Reach Compliance Code unknown
Pitch - Mating 0.156 3.96mm
Insulation Color Black
Contact Length - Post 0.172 4.37mm
Shrouding Shrouded - 1 Wall
Contact Length - Mating 0.450 11.43mm
Overall Contact Length 0.750 19.05mm

Dimensions

Contact Finish Thickness - Mating 60.0μin 1.52μm
Contact Finish Thickness - Post 60.0μin 1.52μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
