0026481030
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

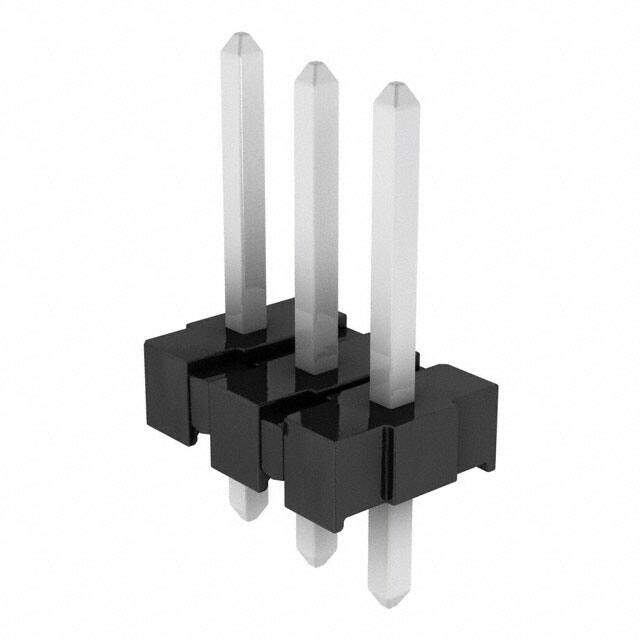

CONN BKWY HEADER 3POS STR TIN
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4752
≥1 USD $0.4752
≥10 USD $0.39864
≥100 USD $0.310112
≥500 USD $0.243646
≥1000 USD $0.214113
≥3000 USD $0.199346
Inventory: 3086
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm
Technical
Overall Contact Length 0.890 22.61mm
Contact Length - Mating 0.590 14.99mm
Contact Finish - Post Tin
Number of Contacts 3
Shrouding Unshrouded
Contact Length - Post 0.172 4.37mm
Insulation Color Black
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.128 3.25mm
Pitch 3.9624mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Color Black
Number of Positions 3
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 41661
Packaging Bulk
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Copper, Tin
Contact Material Brass
