0026202081
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

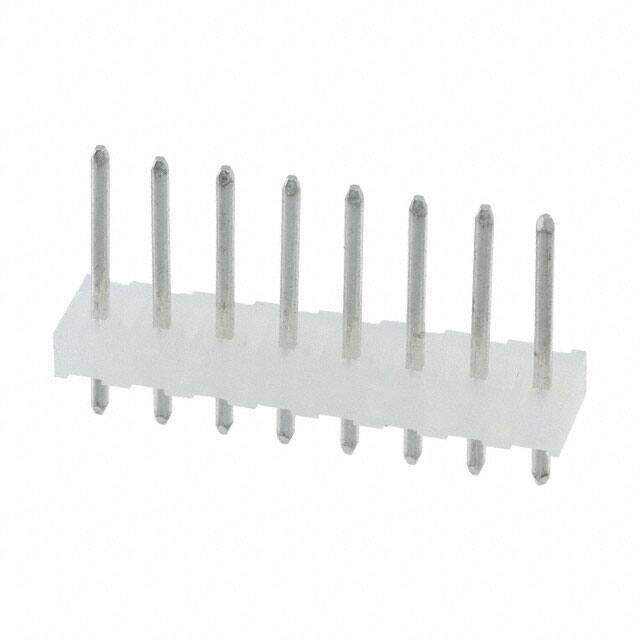

CONN HEADER VERT 8POS 3.96MM
PDF
/
Buying Options
Total Price: USD $1.47
Unit Price: USD $1.4696
≥1 USD $1.4696
≥10 USD $1.25224
≥100 USD $1.034502
≥500 USD $0.816719
≥1000 USD $0.724161
≥3000 USD $0.707819
Inventory: 732
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Overall Contact Length 0.750 19.05mm
Contact Length - Mating 0.450 11.43mm
Shrouding Unshrouded
Contact Length - Post 0.175 4.45mm
Insulation Color Natural
Pitch - Mating 0.156 3.96mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.125 3.18mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series KK 3192
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
