0022438040
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

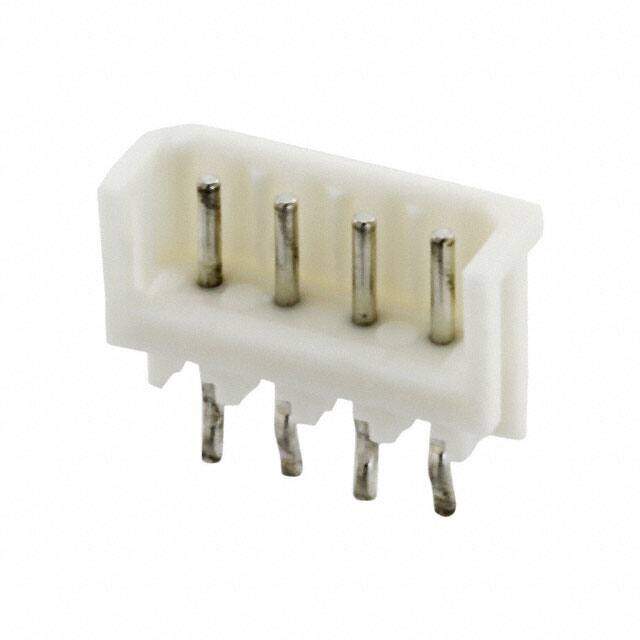

Conn Shrouded Header M 4 POS 2.5mm Solder ST Thru-Hole SPOX? Bag
PDF
/
Inventory: 5656
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Contact Length - Mating 0.138 3.50mm
Shrouding Shrouded - 3 Wall
Contact Length - Post 0.130 3.30mm
Insulation Color Natural
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.283 7.19mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 4
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series SPOX 42267
Packaging Bulk
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
