0022292101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

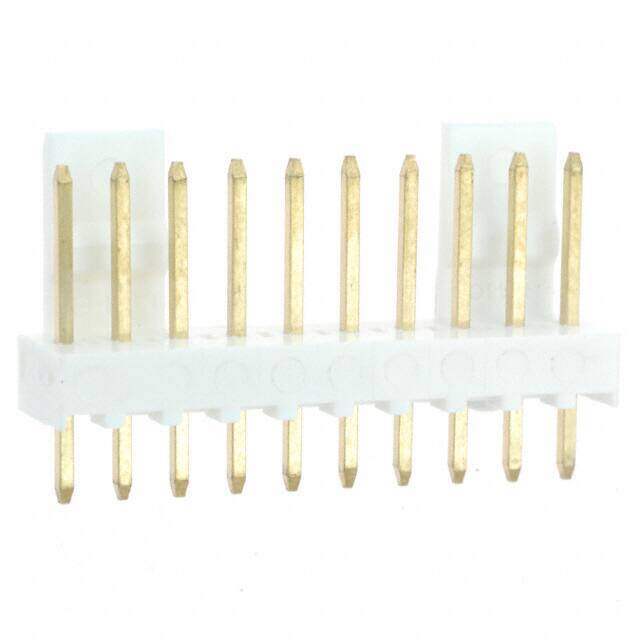

CONN HEADER VERT 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6544
≥1 USD $1.6544
≥10 USD $1.408
≥100 USD $1.16336
≥500 USD $1.078
Inventory: 21404
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Series KK 6410
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.461 11.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 1 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.295 7.49mm
Overall Contact Length 0.560 14.22mm
Dimensions
Contact Finish Thickness - Mating 20.0μin 0.51μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
