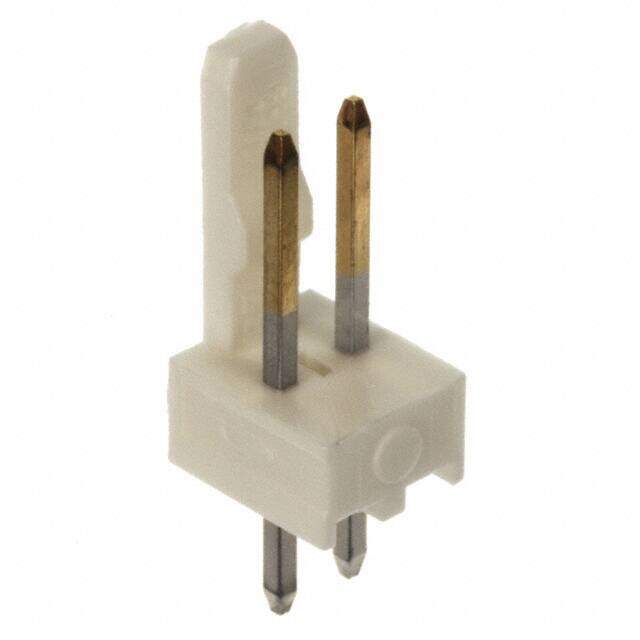

0022292021
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 2POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
≥10 USD $0.37576
≥100 USD $0.292512
≥500 USD $0.208912
≥1000 USD $0.201951
≥3000 USD $0.18524
Inventory: 124640
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Series KK 6410
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Additional Feature POLARIZED
Fastening Type Friction Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.461 11.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 1 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.295 7.49mm
UL Flammability Code 94V-0
Overall Contact Length 0.560 14.22mm
Dimensions
Contact Finish Thickness - Mating 20.0μin 0.51μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
