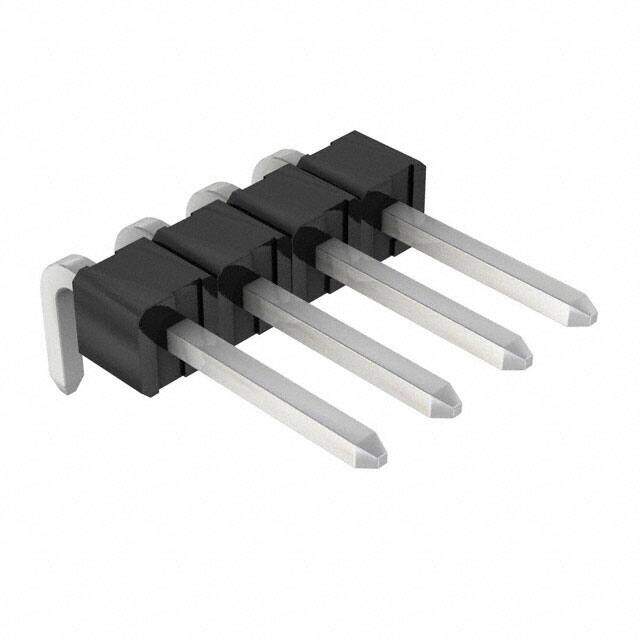

0022288041
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 4POS .100 R/A TIN
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.2728
≥100 USD $0.2002
≥500 USD $0.159227
≥1000 USD $0.136479
≥3000 USD $0.12738
Inventory: 3103
Minimum: 1
-
+
Technical Details
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Housing Material Thermoplastic
Technical
Packaging Bulk
Series KK 42377
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Breakaway
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Voltage - Rated DC 250V
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Right Angle
Depth 12.3mm
Insulation Height 0.098 2.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Lead Pitch 2.54mm
Number of Contacts 4
Contact Length - Mating 0.324 8.23mm
Contact Resistance 20mOhm
Max Voltage Rating (AC) 250V
Dimensions
Length 10.16mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
