0022287143
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

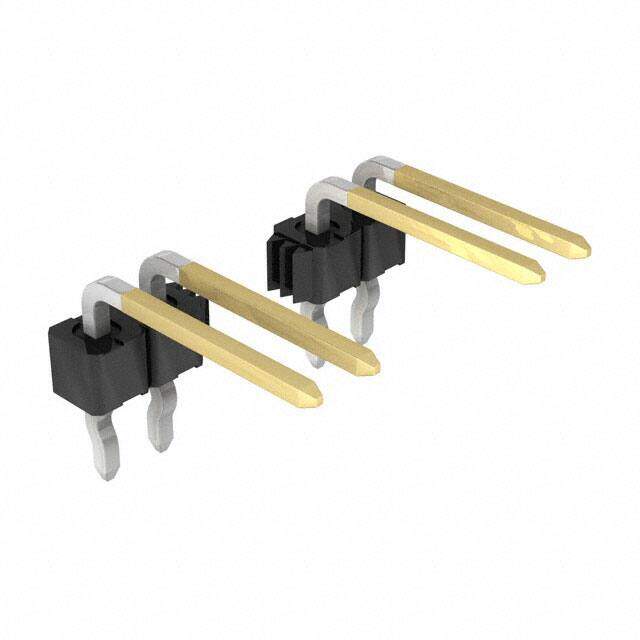

CONN HEADER R/A 14POS 2.54MM
PDF
/
Inventory: 5611
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Material Brass
Technical
Packaging Bulk
Series KK 42376
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header, Breakaway
Number of Positions 14
Color Black
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Pitch 2.54mm
Orientation Right Angle
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.135 3.43mm
Shrouding Unshrouded
Number of Contacts 14
Contact Finish - Post Tin
Contact Length - Mating 0.405 10.29mm
Number of Circuits 14
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
