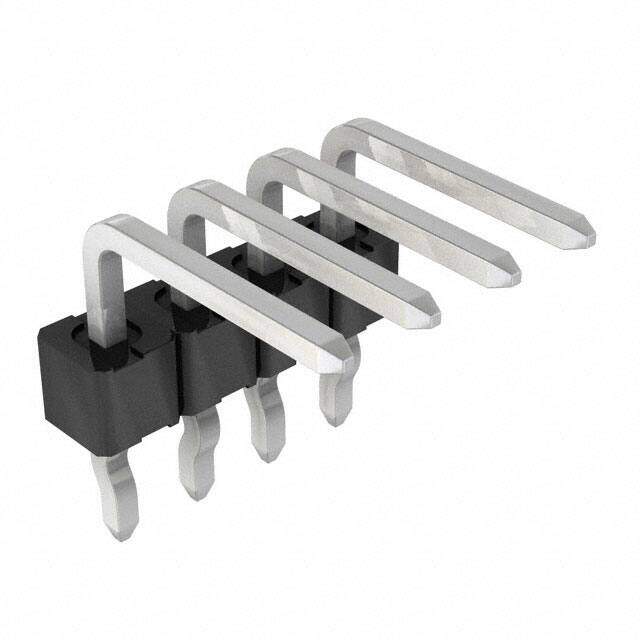

0022287040
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings KK 100 Hdr Assy RA B y RA Bkwy 04 Ckt Tin
PDF
/
Inventory: 3206
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Material Brass
Technical
Packaging Bulk
Series KK 42376
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header, Breakaway
Number of Positions 4
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Right Angle
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.135 3.43mm
Shrouding Unshrouded
Contact Length - Mating 0.361 9.17mm
Number of Circuits 3
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
