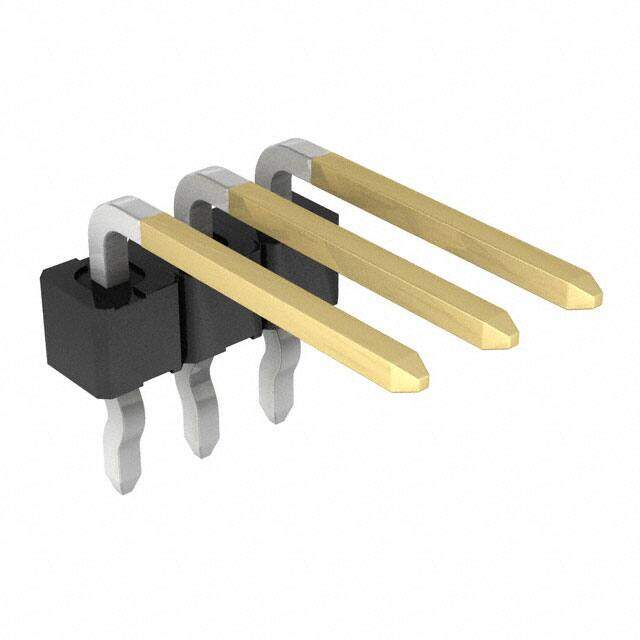

0022287035
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
KK 100 HDR ASSY RA BKWY 03CKT
PDF
/
Inventory: 4448
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Contact Length - Mating 0.405 10.29mm
Contact Finish - Post Tin
Number of Contacts 3
Shrouding Unshrouded
Contact Length - Post 0.135 3.43mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.090 2.29mm
Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Color Black
Number of Positions 3
Connector Type Header, Breakaway
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 42376
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 11 Weeks
