0022286263
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

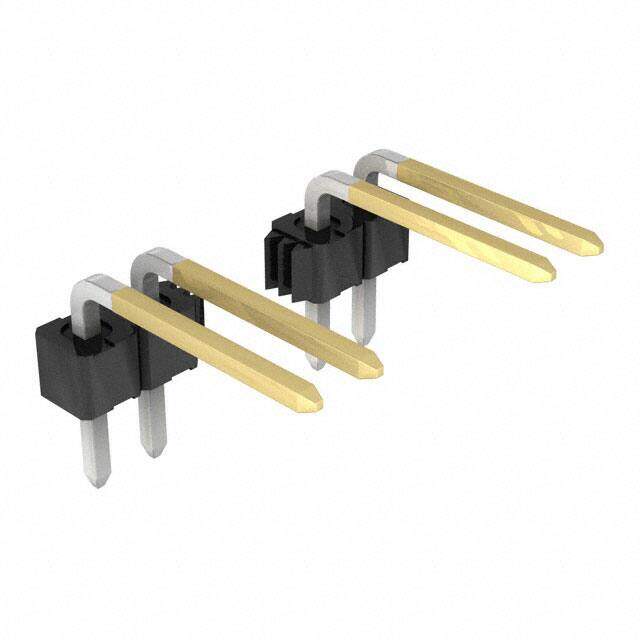

Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 26 Ckt 15 SGold
PDF
/
Inventory: 2269
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Material Brass
Housing Material Nylon
Technical
Packaging Bulk
Series KK 42376
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 26
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Black
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Pitch 2.54mm
Orientation Right Angle
Depth 11.53mm
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Number of Contacts 26
Contact Finish - Post Tin
Contact Length - Mating 0.405 10.29mm
Housing Color Black
Contact Resistance 20mOhm
Number of Circuits 25
Max Voltage Rating (AC) 250V
Dimensions
Length 66.04mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Alternative Model
