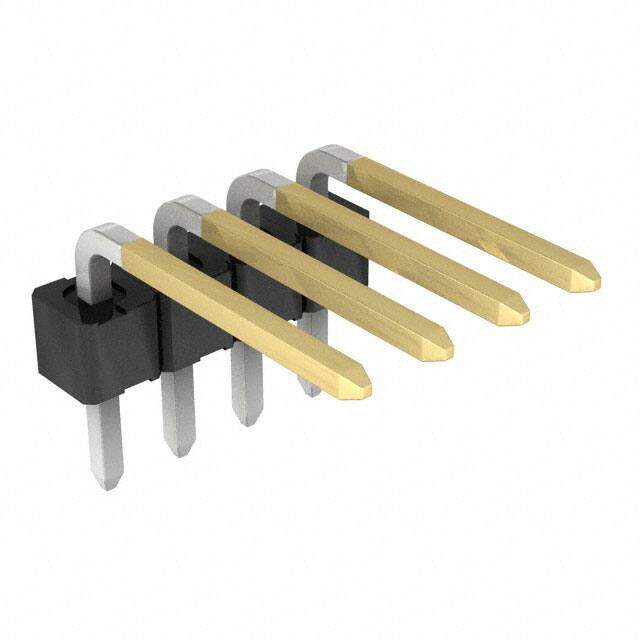

0022286042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Bag
PDF
/
Inventory: 8263
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Housing Material Thermoplastic
Technical
Packaging Bulk
Series KK 42376
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Male
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Right Angle
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Number of Contacts 4
Contact Finish - Post Tin
Contact Length - Mating 0.361 9.17mm
Contact Resistance 20mOhm
ELV Compliant
Max Voltage Rating (DC) 250.25kV
Glow Wire Compliant Non-compliant
Dimensions
Height 3.61mm
Length 10.2mm
Width 2.49mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
