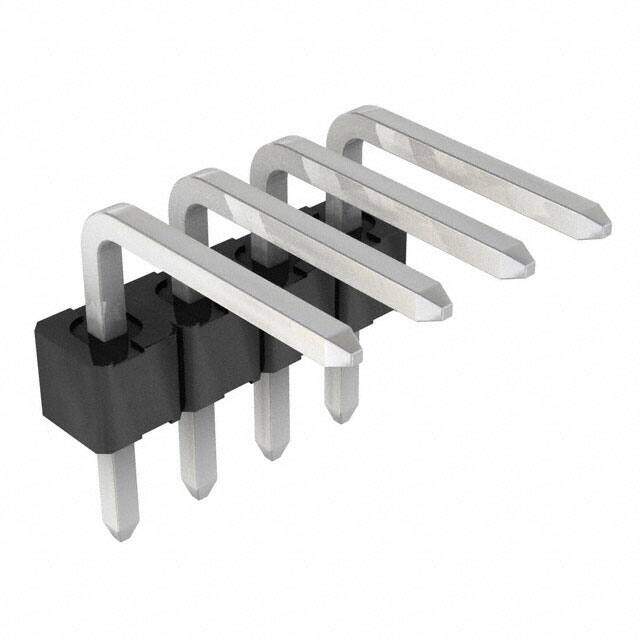

0022286041

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings KK 100 Hdr Assy RA B y RA Bkwy 04 Ckt Tin
PDF
/
Inventory: 6237
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Contact Material Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Material Brass
Housing Material Nylon

Technical

Packaging Bulk
Series KK 42376
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Right Angle
Depth 11.53mm
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Number of Contacts 4
Contact Length - Mating 0.405 10.29mm
Contact Resistance 20mOhm
Max Voltage Rating (AC) 250V

Dimensions

Length 10.16mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
